Integrating Meta Pixel + Conversions API

This past month I’ve been working through marketing API integrations—mainly Google Ads, Google Merchant Center, Meta, and Facebook Marketplace. Google Ads and Meta are done; I’m writing this down so I can revisit the process later.

Previously the site relied on the browser Pixel alone. Over time we still missed events—payment redirects to a gateway, ad blockers, cookie consent, closed tabs, and so on. Meta recommends running Pixel and the Conversions API (CAPI) together, then deduplicating with the same event_id, so conversion counts stay accurate.

This post is based on an ecommerce integration I’ve been helping with: architecture, frontend/backend split, and what to watch before go-live. It fits a Nuxt / Vue storefront plus an order-backend webhook. Our Taiwan payment partner is ECPay; the US uses Stripe. The same pattern works for both.

Two paths, one purchase

User payment succeeds
        │
        ├─► Browser: GTM → Pixel Purchase (event_id = order number)
        │
        └─► Backend: CAPI Purchase (event_id = same order number)
                    │
                    ▼
              Meta dedup → counts as 1 conversion

Both browser and server must send the same event_id:

event_id = order_serial_number (order number)

That event_id must match GTM dataLayer ecommerce.transaction_id and the Pixel eid.

Responsibility split (AI-suggested; review whether it fits your team)

The storefront is Nuxt. The browser does not call fbq directly—it uses the existing GTM setup. CAPI lives on the order backend (ECPay / Stripe webhook).

Frontend: cookie consent + ad_tracking_data

Why consent gates what we send

Legal / product decision: if the user has not consented to advertising cookies, do not send Meta attribution fields into the order API. The backend can also skip CAPI when attribution data is missing, so behavior stays aligned with consent.

Order API payload (example shaped like our backend)

The backend accepts attribution as a nested object (same for Taiwan ECPay and US Stripe):

{
  "shipping": { "...": "..." },
  "billing": null,
  "shipping_choice": "Normal",
  "shipping_floors": null,
  "ad_tracking_data": {
    "fbp": "fb.1.1700000000000.1234567890",
    "fbc": "fb.1.1700000000000.AbCdEfGhIj"
  }
}

When ads are declined: omit the whole ad_tracking_data object—do not send null.

Only fbp, no fbc: common when the visit did not come from an ad click.

When fbc exists

1. Cookie already has _fbc, or
2. URL has fbclid=...; the frontend builds fb.{subdomainIndex}.{timestamp}.{fbclid} per Meta’s format, and may store it in session for later checkout

Backend: send CAPI only after payment succeeds

Endpoint

POST https://graph.facebook.com/v25.0/{PIXEL_ID}/events?access_token={TOKEN}

Choose the Pixel by order market (example: one Dataset / Pixel for Taiwan, one for the US). Keep the token on the backend only.

Payload example

{
  "data": [
    {
      "event_name": "Purchase",
      "event_time": 1752990000,
      "event_id": "2607204856",
      "event_source_url": "https://www.example.com/tw/payment-result/success?order_serial_num=2607204856",
      "action_source": "website",
      "user_data": {
        "em": ["<sha256 of normalized email>"],
        "ph": ["<sha256 of E.164 phone>"],
        "fbp": "fb.1....",
        "fbc": "fb.1....",
        "client_ip_address": "203.0.113.42",
        "client_user_agent": "Mozilla/5.0 ..."
      },
      "custom_data": {
        "currency": "TWD",
        "value": 2180,
        "order_id": "2607204856",
        "content_type": "product",
        "content_ids": ["15"],
        "contents": [
          { "id": "15", "quantity": 1, "item_price": 1180 }
        ],
        "num_items": 1
      }
    }
  ],
  "test_event_code": "TESTxxxx"
}

A successful response looks like:

events_received": 1

When to fire

Send from the ECPay / Stripe payment-success webhook (or the same moment you confirm “paid”)—not when the user merely creates an unpaid order.

GTM: Event ID for browser Purchase

Map the Facebook Pixel Tag Event ID to the dataLayer transaction id, for example:

{{ecommerce.transaction_id}}

The thank-you page purchase push should carry the same order number (put event_id in the dataLayer as well). In Network, the Facebook tr request should show:

• ev=Purchase
• eid=<order number>
• id=<Pixel ID for that market>

How do we verify?

Test Events are useful, but staging Basic Auth can leave the Browser list empty even when the Pixel did fire. Verify in layers:

Browser

Server

Cookie consent (must test)

To inspect the body: open DevTools Network before submitting the order, enable Preserve log, find POST .../orders/ecpay or .../orders/stripe → Payload.

Dedup

Same order:

• Browser: eid=2607204856
• Server: event_id=2607204856

Then Meta merges them into one conversion.

How to test

Make sure marketing (or whoever owns access) has granted permission to test in Events Manager. In Events Manager, pick the market under test. For our store we’re rolling out Taiwan and the US—different markets mean different Pixel IDs. In our experience the Access Token can be the same across markets; token creation often sits with marketing, so confirm ownership and ask them to provide it.

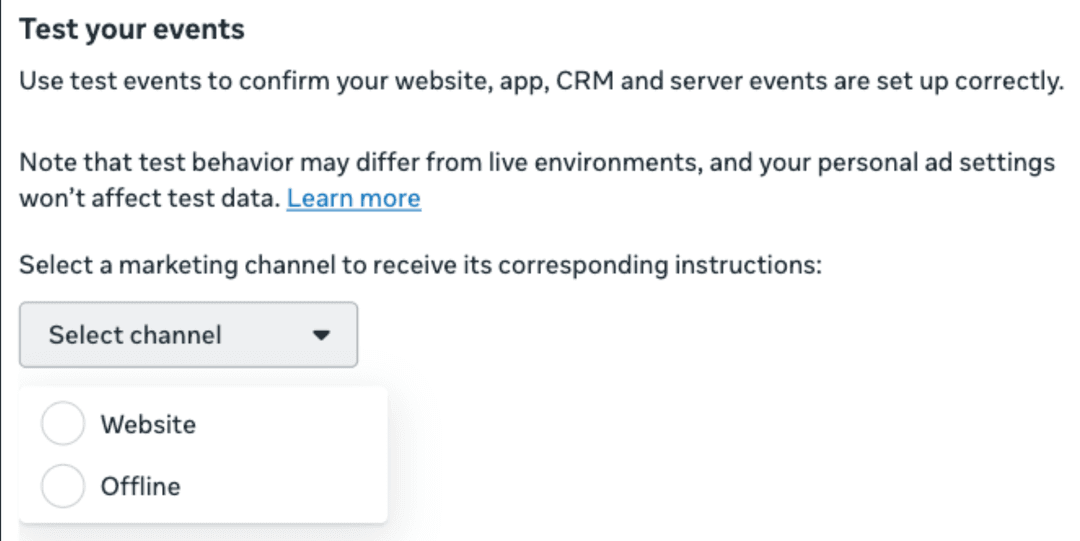

Open the Test Events UI and choose website:

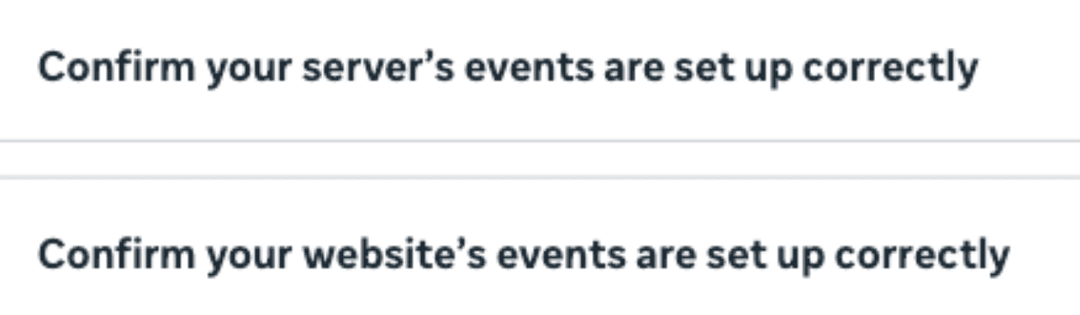

You’ll see Server and Browser options. If the backend isn’t ready yet, start with the browser:

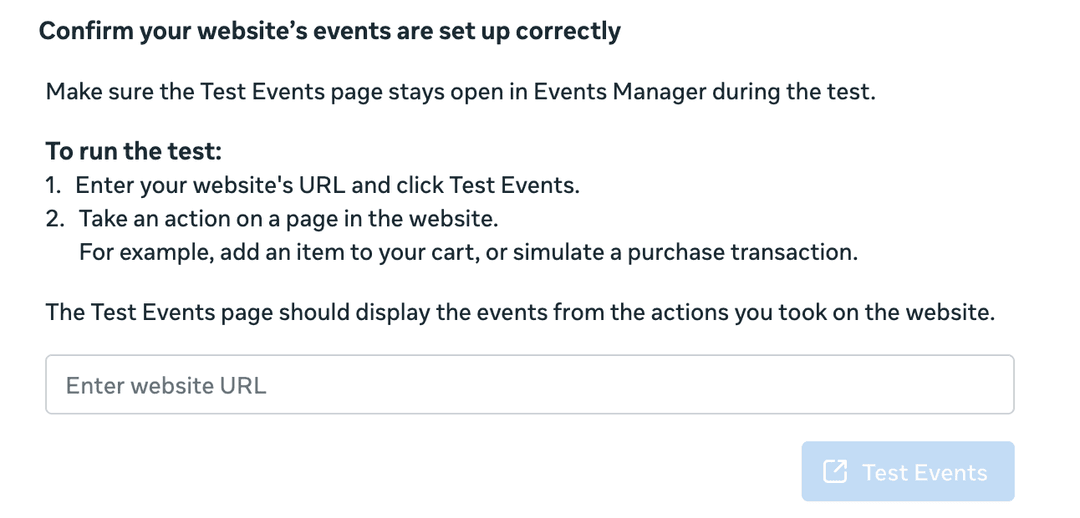

Enter the domain under test, click Test Events, and use the popup to run basic flows and confirm events:

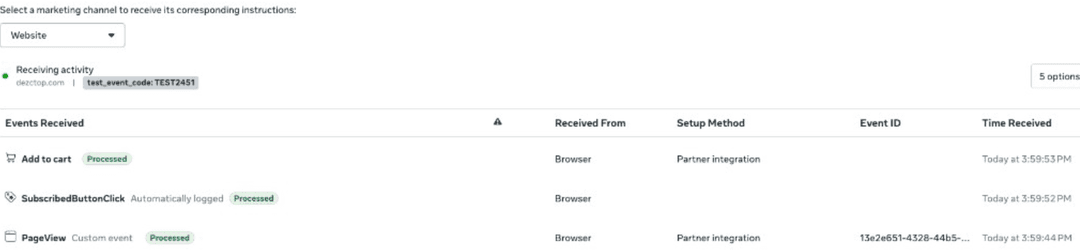

When things work, events configured for the site show up in the list:

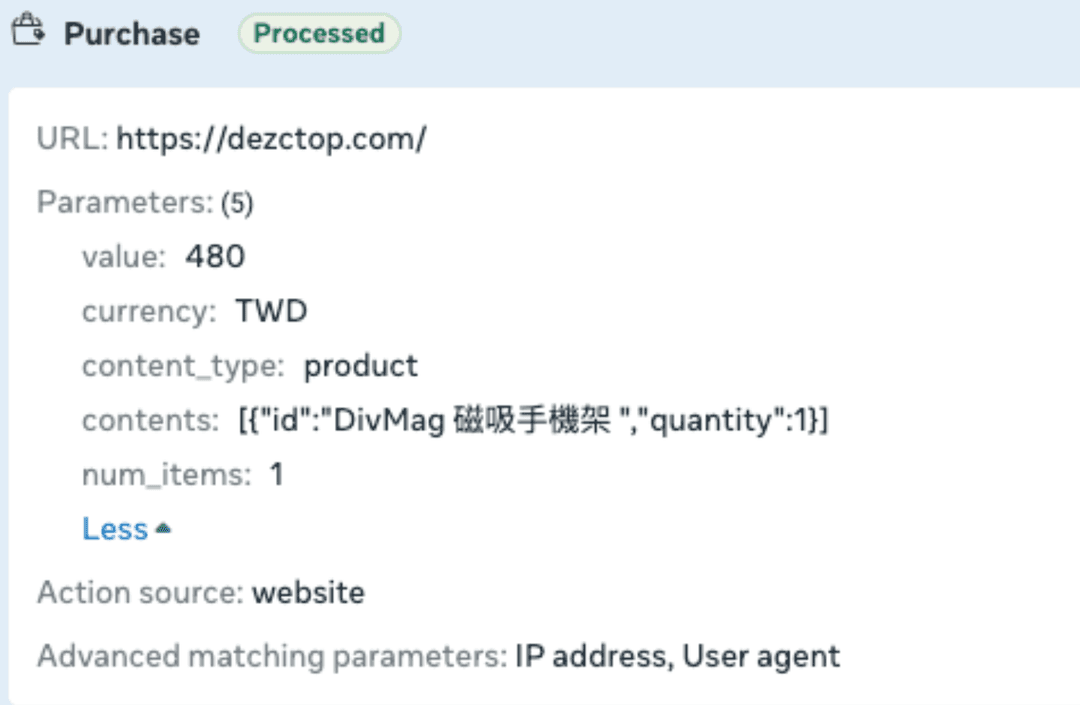

After creating an order and paying, you should see a Purchase event:

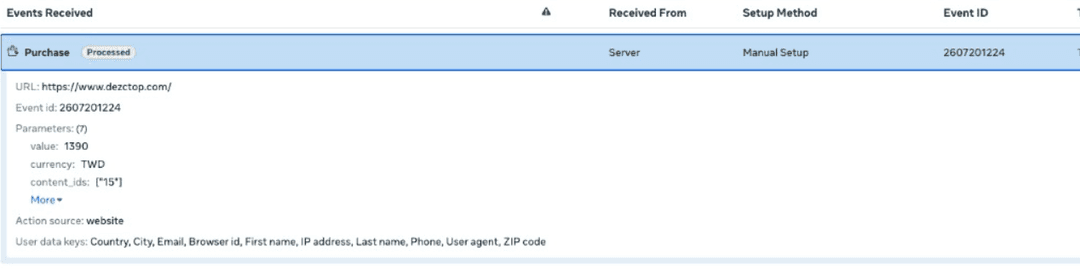

Once server integration is live, after the frontend completes a purchase you should see something like this on the Server side:

Things to watch during the project

1. event_time too old → OAuthException / “event timestamp too far in the past”. Use date +%s or the real payment time.
2. Staging GTM turned off → e.g. a debug loglevel flag also disables GTM, so the thank-you page never fires Pixel. Env vars should control “enable GTM” independently.
3. Test Events missing PageView / Purchase → often the monitor isn’t attached; use Network / Pixel Helper / overview instead. For Server, rely on test_event_code.
4. API moved to nested fields but frontend still sends a flat payload → if the backend skips CAPI without ad_tracking_data, it looks like Server is broken. Keep the frontend/backend contract in sync.
5. Doc placeholders shipped to production → e.g. content_ids: ["<product_variation_id>"]; use real IDs in prod.
6. test_event_code left on in production → remove it before go-live.

Checklist

• Staging: verified accept / decline cookie body and CAPI behavior
• Staging: Browser + Server share the same event_id
• Production: remove test_event_code
• Production: Pixel (each market has its own Pixel ID)
• Production: place a small test order; spot-check Network / Events Manager

References

• Meta Conversions API
• Deduplicate Pixel and server events
• Customer Information Parameters (user_data)
