Integrating Meta Catalog API

The previous post covered Integrating Meta Pixel + Conversions API. The goal there was to run Pixel and Conversions API (CAPI) in parallel, then deduplicate with the same event_id so conversion counts stay accurate.

We can already send purchase events to Meta (browser Pixel + server CAPI), and conversion deduplication lines up via the order number. But to run Catalog dynamic ads / retargeting, Meta also needs to know which catalog SKU the user viewed, added to cart, or bought.

Content IDs must match before retargeting works

At acceptance, the catalogs already had products (Taiwan / USA both had feeds loaded).

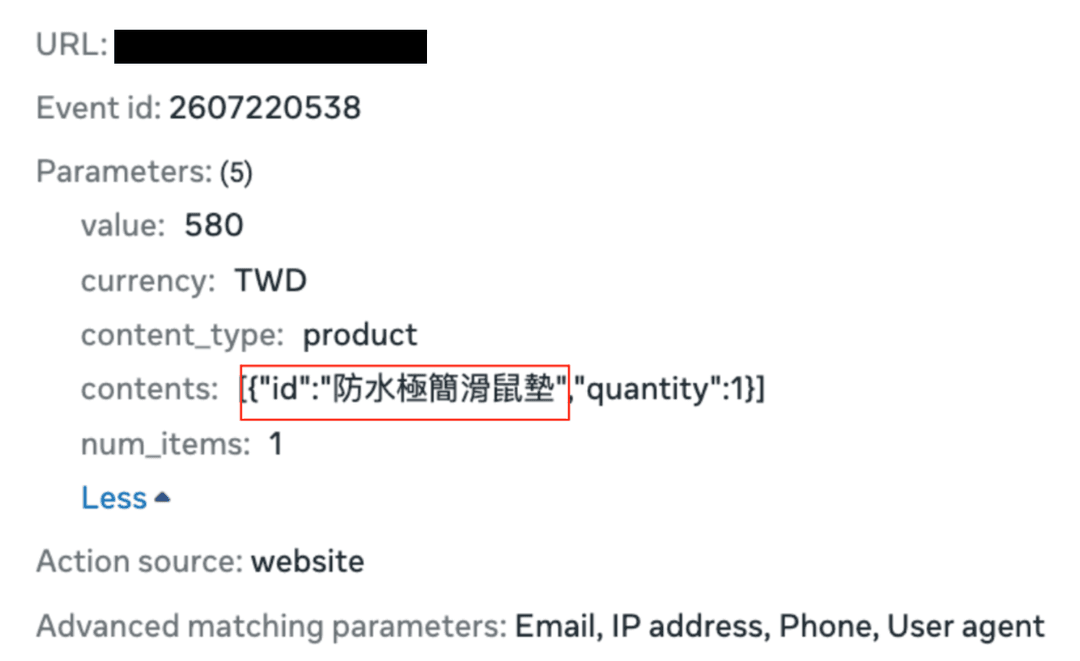

But in Meta Test Events, Purchase contents looked like this:

For the same product, the Catalog Content ID was:

The storefront product API’s variations[].model was also AC-MPNQ35-BK1.

Comparing the sources made it obvious:

When the event id does not equal the Catalog Content ID, dynamic ads cannot correctly associate to catalog products.

Deciding which field to use as the id

There are several candidate ids: numeric variation.id, EAN, Chinese name, model…
From the table above, model is a reasonable choice:

Catalog Content ID
  === Pixel / CAPI contents.id and content_ids
  === storefront dataLayer item_id
  === variations[].model (e.g. AC-MPNQ35-BK1, CR-ARCMEG-BK2)

Why model:

1. The existing feed already uses it.
2. It’s easy for CS, warehouse, and ad creative reconciliation.
3. Different colors / specs of the same product are different SKUs and should be tracked separately.

Also: never use the product name as the Content ID. If there is no model, omit item_id and keep only item_name for GA / display.

Changes across the stack

Once we agreed to use model as the id, we had to confirm frontend, backend, and GTM were all consistent:

┌─────────────┐     ┌──────────────┐     ┌─────────────┐
│ Meta Catalog │◄───│ Backend Feed／ │     │ Order CAPI  │
│ Content ID   │    │ Batch sync    │     │ content_ids │
│   = model    │    └──────────────┘     │   = model   │
└──────▲───────┘                         └──────▲──────┘
       │                                        │
       │         ┌──────────────────┐           │
       └─────────│ Storefront       │───────────┘
                 │ dataLayer        │
                 │ item_id = model  │
                 └────────▲─────────┘
                          │
                 ┌────────┴─────────┐
                 │ GTM Facebook Tag │
                 │ reads item_id,   │
                 │ not item_name    │
                 └──────────────────┘

Meta Catalog (backend and marketing)

• Feed uses model as the retailer / Content ID.
• Backend: update price, promotions, and inventory via Feed + Batch / scheduled jobs; ensure CAPI content_ids and contents also use the model id.
• Marketing: turn off the old Google Sheet “full-table replace” schedule and treat the new Feed as the source of truth.

Storefront (frontend)

Ensure item_id is filled in, with the mapper always:

item_id ← itemIdFromModel(model)   // only when model is non-empty
item_name ← product display name   // for humans and GA

Cover the rest of the purchase funnel (adapt to your company’s rules):

We verified: the order detail API already has model; Purchase dataLayer correctly shows item_id: "AC-DMPHOH-BK1".
Product-page add-ons carry model, so add_to_cart also sends the SKU.

GTM → Facebook Pixel (marketing’s turf? 🧐)

We use the community template Custom Version of Facebook Pixel, with Enhanced Ecommerce dataLayer Integration enabled.

The template auto-builds contents from ecommerce, but in practice it often treats the product name as the id.

Steps to add the override variables:

1. Open Tags and find Facebook Pixel
   • Under Object Properties, add variables for content_ids and contents.
     • Add CJS variables that pull item_id from the existing {{ecommerce.items}}.
2. Override Object Properties on the Tag:
   • Property Name: contents → Value: {{CJS - Meta Contents}}
   • Property Name: content_ids → Value: {{CJS - Meta Content IDs}}
     (Note: content_ids plural, not content_id.)
3. If you have separate Pixel Tags per market, update each one the same way.
4. Pass Preview, then publish the container.

Acceptance: open Preview and actually click through:

# dataLayer

dataLayer.push({
  event: "add_to_cart",
  target: null,
  action: null,
  target-properties: null,
  value: null,
  interaction-type: false,
  ecommerce: {
    currency: "TWD",
    value: 480,
    items: [
      {
        item_name: "XXX",
        item_id: "AC-UDHOOK-BK1", # override succeeded here
        item_brand: "XXX",
        price: 480,
        item_category: "XXX",
        item_variant: "XXX",
        quantity: 1
      }
    ]
  },
  gtm.uniqueEventId: 270
})

🐞 Bug: old SKUs still showing up

After Content IDs matched everywhere, the data still looked odd, so I’m noting it here. Roughly:

1. Add products A and B separately — each time Meta only has 1 id (expected).
2. Empty the cart completely.
3. Add product C — Meta / GTM variables become C + already-deleted B.

The dataLayer API call often only has C, but Preview’s CJS - Meta Contents still has two rows.

Debugging showed it wasn’t “the clear-cart API failed to wipe state,” but:

• The site cart and GTM’s internal ecommerce state are two separate memories.
• Clearing the cart only clears the former; if the latter isn’t explicitly wiped, the next merge can bring old items back.

Fix:

Before every ecommerce event:
  dataLayer.push({ ecommerce: null })
then trackEvent(the real add_to_cart / purchase / …)

That’s the write-up for this Meta Catalog integration. It looks simple on the surface, but with three teams involved—even though I owned the frontend—having to write the docs (and working through them with AI) forced a clear split of responsibilities. That made cross-team coordination much clearer. A valuable experience!
