The previous post, Relational Database Design 1, went over the principles and goals of relational database design. This post covers the design steps, conceptual data modeling, and entity relationship diagrams.

Steps of database design

Whether you work on the frontend, the backend, or the cloud, the starting point for planning a business service or business logic is always the same: you need to know the business and user requirements. Database design works the same way.

Step 1: Business or user requirements

Confirm the data the business or the users need
Understand how the data will be used
Define business constraints, such as security, terms, and performance requirements

Step 2: Conceptual data model

Sketch the "big picture" of the database without going into detail
Create an Entity Relationship Diagram (ERD)
Define the entities, plus the relationships and attributes between them

Step 3: Logical design

Turn the ERD into table definitions with primary keys
Define foreign keys to express the relationships between tables and data
Normalize the database by applying normal forms

Step 4: Physical design

Pick a suitable data type for every attribute
Define any indexes you need for performance

Step 5: Implement the physical design

Choose an RDBMS and build the database schema with SQL
Set up the keys and constraints you need
Test it by inserting sample data

Step 6: Testing and rollout

Test specific user scenarios with real data
Find performance bottlenecks
Keep tuning constraints, indexes, and the schema when needed

Step 7: Maintenance and documentation

Write documentation for the schema
Plan for later changes and growth
Review and evaluate from time to time, so the design keeps up with changing business needs

Conceptual data modeling

You can think of conceptual data modeling as looking at all the information in the business requirements from a bird's-eye view. Like a blueprint, it helps everyone involved use the same agreed-upon definitions. The data defined at this stage represents the business processes, and how that data supports the business rules and requirements.

Elements of a conceptual data model

A basic conceptual data model has:

Entity: the database object that stores the data you need (that is, a table)
Attribute: a property or characteristic of an entity (that is, a column in the table)
Relationship: shows how entities connect to each other
Cardinality: describes the type of connection between entities (one-to-one, one-to-many, many-to-many, and so on)

Entity Relationship Diagram (ERD)

An ERD is used to model the structure of a database. The main points:

It is more detailed than a conceptual model
Like the conceptual model, it maps out entities, relationships, and cardinality
It also includes the attributes of each entity (the columns in the table)
It includes extra table information, such as primary keys, foreign keys, and indexes

Cardinality

Cardinality defines the upper limit on how rows in two tables map to each other.

Relationship type	Notation	Description	Example
One-to-One	1:1	One row in table A can only match one row in table B	A user and their ID number
One-to-Many	1:N / 1:M	One row in table A can match many rows in table B, but one row in B can only match one row in A.	Customers and orders (one customer can have many orders)
Many-to-Many	N:M	One row in table A can match many rows in table B, and the other way around. Usually needs a junction table to break it apart.	Students and courses (a student takes many courses, a course has many students)

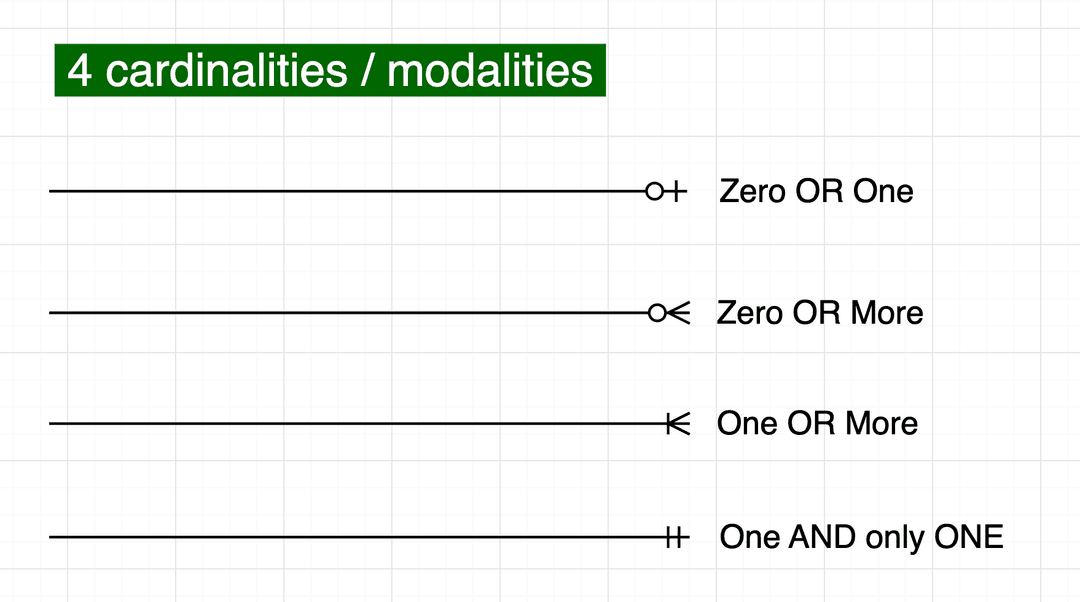

Cardinality / participation

There are four types (top to bottom):

Zero or one
Zero or more
One or more
Exactly one

From these four, three main categories follow:

One-to-One
One-to-Many
Many-to-Many

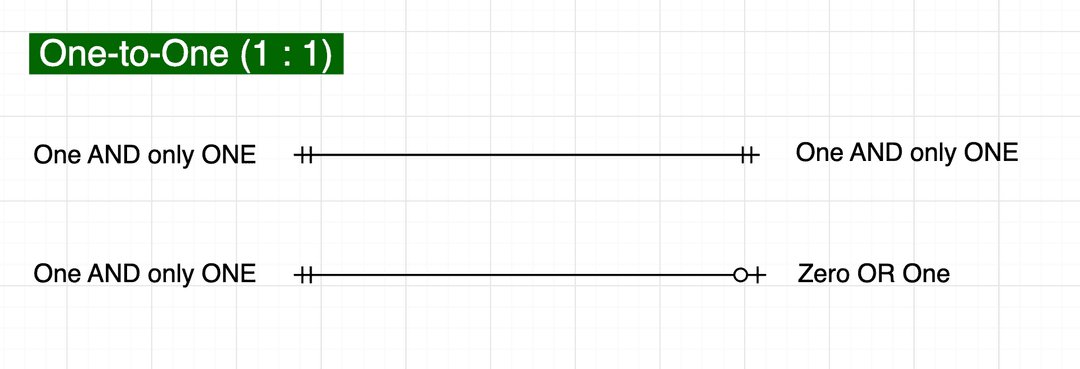

One-to-One / 1:1

Compared with one-to-many or many-to-many, one-to-one shows up less often in everyday business systems. Its main traits:

Each row in one entity can only match one row in the other entity
The relationship can be 1...1, or 0...1 / 1...0 (as shown in the diagram)
When you implement it, the foreign key goes on the dependent table and points to the primary key of the main entity
To really limit it to one-to-one, the foreign key usually needs a UNIQUE constraint, or it doubles as the primary key (PK + FK)
When designing a one-to-one, ask first: do these two entities really need to be split into two tables?
Common reasons to split:
- The data is optional
- The two have different lifecycles
- You need to isolate permissions or sensitive data
- They belong to different areas of responsibility
- They are accessed differently

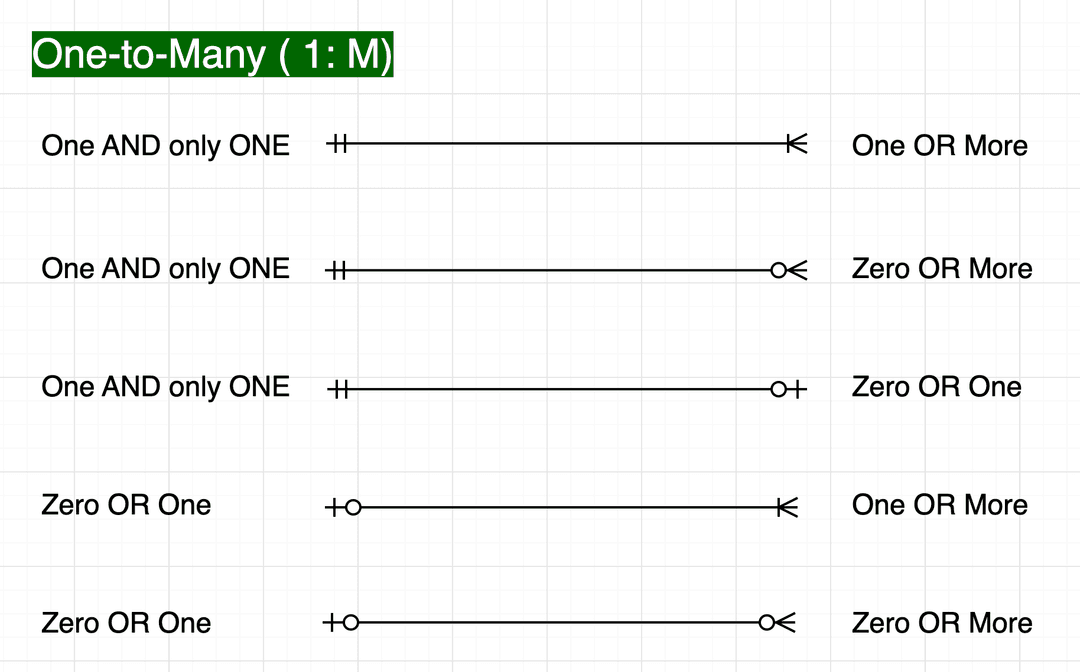

One-to-Many / 1:M

One row in an entity can match many rows in another entity, but each row on the many side usually matches only one row on the one side
The relationship can be optional 0..N or required 1..N, depending on the business rules
When you implement it, the foreign key usually goes on the M side and points to the primary key of the 1 side
Whether the foreign key allows NULL depends on whether the relationship is optional. If every child row must belong to a parent row, it is usually set to NOT NULL
One-to-many is one of the most common relationships in a relational database
When designing a one-to-many, pay attention to the minimum cardinality: is it 0..N or 1..N?

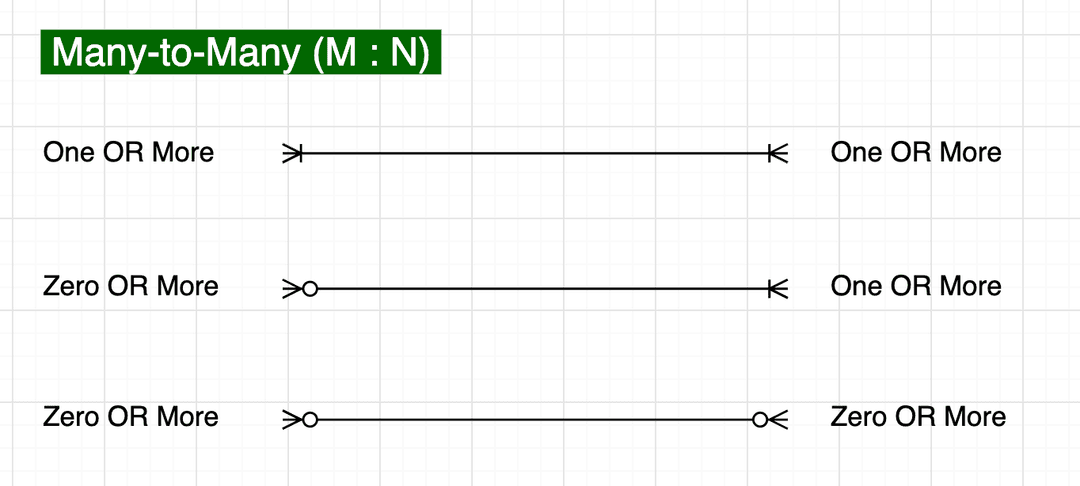

Many-to-Many / M:N

One row in an entity can match many rows in another entity, and one row in that other entity can also match many rows back
Both sides may be 0..N or 1..N; the actual minimum cardinality depends on the business rules
In a relational database, you usually don't implement an M:N relationship directly. Instead you create a junction table (also called an associative entity) to connect the two
The junction table normally holds the foreign keys of both entities, which splits the original M:N into two 1:N relationships
If the relationship itself carries data — quantity, price, role, join date, status — those attributes usually live in the junction table
The junction table can use the two foreign keys as a composite primary key, or it can have its own separate primary key. Which one you pick depends on your actual needs
While designing, check whether the same pair is allowed to repeat. If not, then even with a separate primary key you should usually put a UNIQUE constraint on the combination of the two foreign keys

Putting it into practice

Exercise: a simple online bookstore (provided by Gemini)

We need to build a database for a small online bookstore. The scope covers:

Customers: keep basic contact details.
Books: keep the title, price, and stock.
Orders: a customer can place orders, one order can include several books, and we need to record the quantity ordered.

Based on the scenario above, draw the conceptual model.

List the entities you can think of
Work out the relationships and cardinality between them

Answer

1. List the entities

The main entities in this scenario are:

Customer
Book
Order
Order Item: the junction table between books and orders

Entities are usually named in the singular

2. Work out the relationships and cardinality

Customer and Book

The relationship between customer and book looks like a simple one-to-many: a customer can own zero or many books. The zero case happens right after a user record has been created.

Wait, there may be a problem here

Does this scenario need a customer-to-book table as well as a customer-to-order table? My first instinct was that customer-to-book and customer-to-order are two different pieces of data, but I was looking at the relationship from a user's point of view. In terms of business logic, how many books a customer owns comes from buying them (placing an order), and the junction table "Order Item" already shows how many books a customer bought. So there is no need for a separate customer-to-book table.

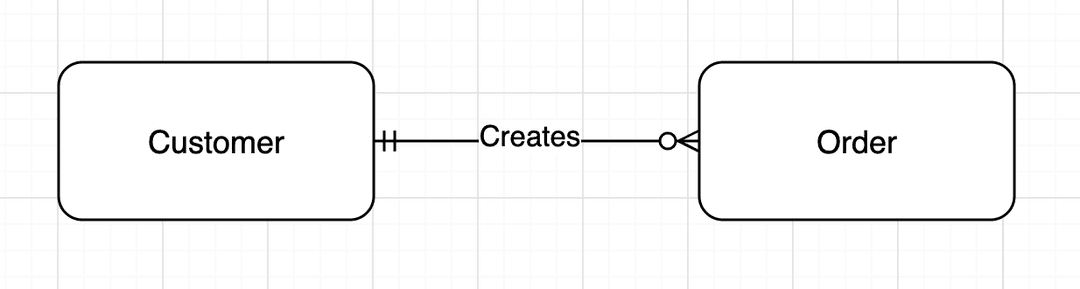

Customer and Order

As mentioned above, we can get the customer-to-book link through the relationship between customer and order. One customer can have many orders — but can one order have many customers? In practice, no. So the relationship between customer and order is settled: one-to-many.

When drawing a conceptual data model, you can add a verb to express the business relationship between the data.

Book and Order

Here it helps to sort out the possible relationships. Both of these can be true:

One book appears in many orders
Many books appear in many orders

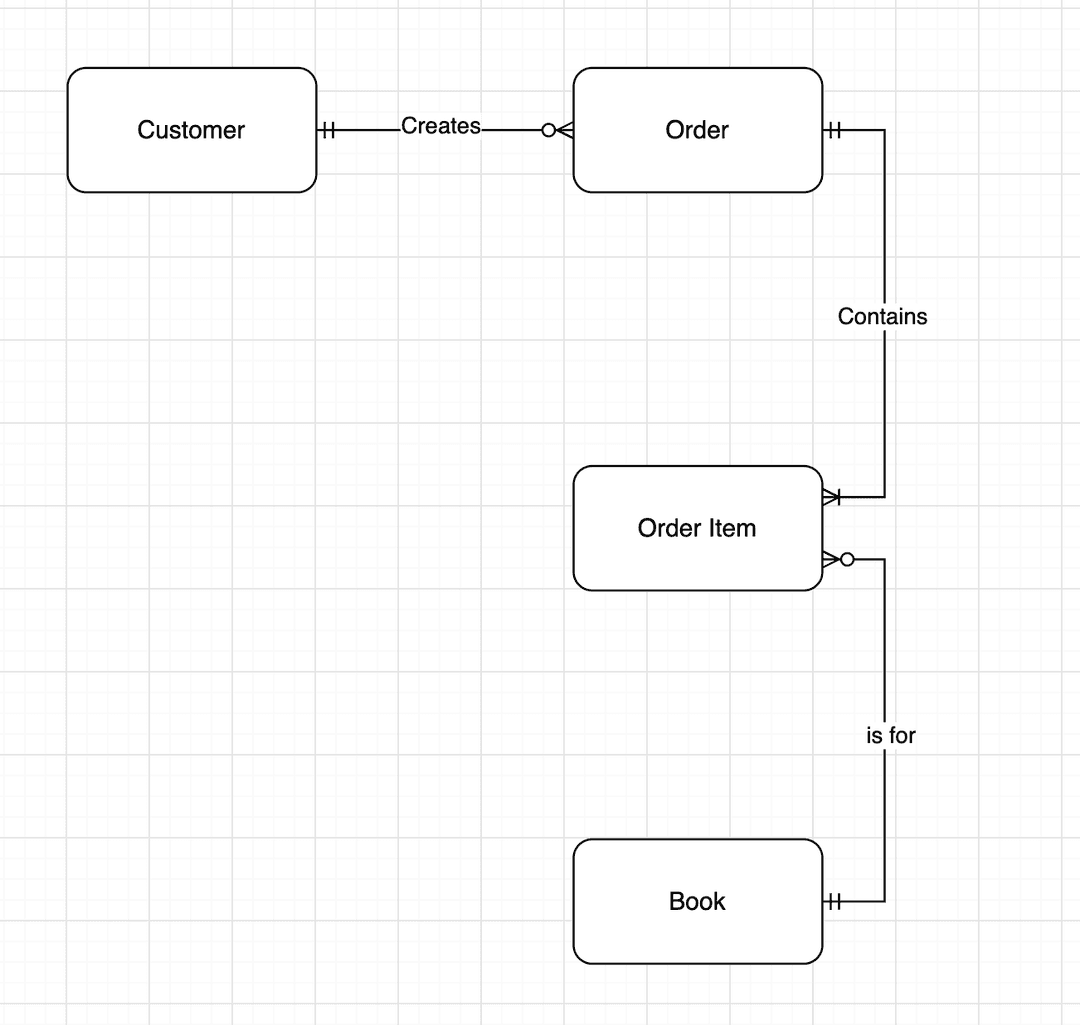

As mentioned earlier, with a many-to-many we don't build an M:N table directly — we use another junction table to connect the two sides. In this scenario that table is "Order Item". If we use "Order Item" as the junction table between books and orders, the relationships look like this:

One order creates many order items
One book creates zero or many order items (a book that was just listed and has never been ordered has no order items)

An ERD still needs the full set of primary keys, foreign keys, and attributes, but this post is already running a bit long — so let's save that for the next one!
